Register today and discover new ways of structure planning. Test us!

We develop intelligent design software for structure engineers.

Aesthetic buildings result from a clever combination of construction components.
We assist you in this task with innovative solutions.

Especially in timber construction the combination of construction parts determines the innovative character of a building. Ingtools offers you tools to design connections and combinations in a simple and material-specific way. The self-explanatory user interface allows intuitive operation. Intelligent optimizing functions support you in your work and reduce the necessary input to a minimum. Drawings and three-dimensional visualizations provide a vivid depiction of the calculation results. In contrast to spreadsheet our documentation uses mathematical formula and thus makes it easier for you to understand the results.





register now

The right tool for every task.
Learn more about the range of application and possibilities of the individual static design modules.

step joint

according to DIN EN 1995-1-1

single step joint, heel notch joint, double step joint and multiple step joint

25

dovetail

building approval Z-9.1-649

main and secondary beam connections as wood to wood connection

15

tensile splice

according to DIN EN 1995-1-1

tensile splices with interior or exterior pull straps made of steel

24

Gerber joint

according to DIN EN 1995-1-1

Gerber joints with straight or slanting sheet

26

frame corner

according to DIN EN 1995-1-1

frame corners with finger joints

32

detail catalog

details in timber construction

detailed execution guidelines including thermal bridge calculation

44

sheet metal form parts

according to ETA

joist hangers according to European Technical Assessment ETA 06/0270

38

timber panel

according to DIN EN 1995-1-1

timber panels according to DIN EN 1995-1-1:2010-12 in connection with National Application Documents

40

sherpa-connector

according to ETA-12/0067

sherpa-connectors consist of two aluminum plates, joined in a friction-locked connection

43

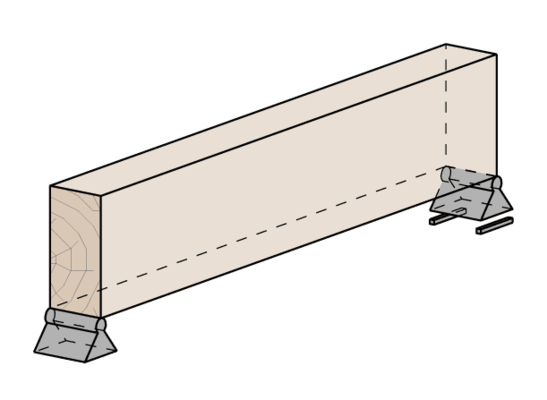

timber beams

according to DIN EN 1995-1-1

single span girder with section load

single step ridge joint

according to DIN EN 1995-1-1

single step ridge joints according to DIN EN 1995-1-1 in connection with National Application Documents

30

Did you know that some of our modules are free in the basic version? The modules dovetail, step joint, metal sheet form parts and project management are at your complete or limited disposal. All other modules can be tested for 10 days. Register now!

Structural engineering

Think differently

Our modules support you effectively in your everyday work. For this purpose we created a clearly structured user interface reduced to the basics. Feel free to work anywhere, from your PC, Mac, tablet or smartphone. No installation is necessary and we deal with necessary updates.

Did we make you curious? Watch this video to learn more about how to use ingtools.



Link to video


Engineering skill

Design individually

You are looking for a fast way to achieve results or need individual adjustment? Our modules offer both possibilities. Activate the optimizing function and get your result with minimal input. Alternatively you can enter and adapt all details individually.


Link to module


Display complex issues in a simple way

The idea to develop this software resulted from the wish to design connection details fast, efficiently and suiting to the material. We want to make architects, engineers and joiners benefit from longstanding experience, theoretical know-how and practical applicability. We put all our passion for wood into each module. And we hope that you disvover this passion while working with the software.
